TB58B O-RING Mechanical seal replace Burgmann BT-C5.KB, John Crane 58B, AES M04S

TB58B O-RING Mechanical seal replace Burgmann BT-C5.KB, John Crane 58B, AES M04S

TB58B O-RING Mechanical seal replace Burgmann BT-C5.KB, John Crane 58B, AES M04S
TB58B O-RING Mechanical seal replace Burgmann BT-C5.KB, John Crane 58B, AES M04STB58B O-RING Mechanical seal replace Burgmann BT-C5.KB, John Crane 58B, AES M04STB58B O-RING Mechanical seal replace Burgmann BT-C5.KB, John Crane 58B, AES M04STB58B O-RING Mechanical seal replace Burgmann BT-C5.KB, John Crane 58B, AES M04STB58B O-RING Mechanical seal replace Burgmann BT-C5.KB, John Crane 58B, AES M04S
CategoriesO-ring Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-06-17
Detail Information

Description

TB58B Mechanical Seal

Replacement to:

Burgmann BT-C5.KB seal

John Crane T58B seal

Aesseal M04S seal

Sterling 259BS seal


Operational Conditions:

Temperature: -20℃ to +180℃

Pressure: ≤2.5MPa

Speed: ≤15m/s


Materials:

Stationary Ring: Ceramic, Silicon Carbide, TC

Rotary Ring: Carbon, TC, Silicon Carbide

Secondary Seal: NBR, EPDM, Viton, PTFE

Spring and Metal Parts: Steel


Seat Type:

Standard: TBBP

Alternative: TBBO


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

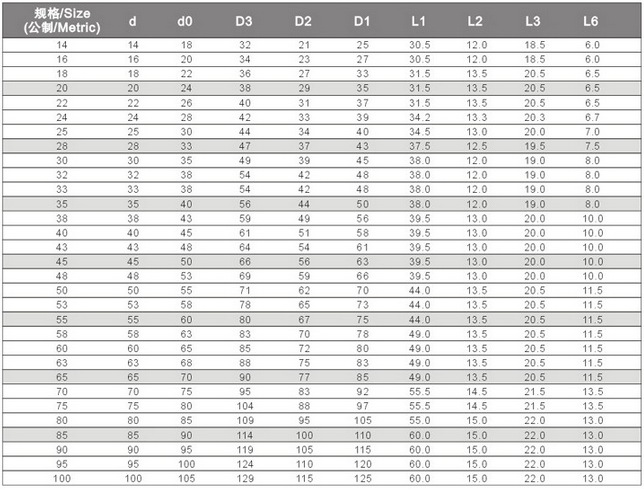

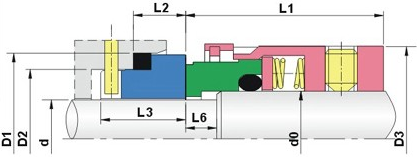

Size:




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.


4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .
