TB68 O-RING Mechanical seal replace John Crane 80 (DF/ FP), AES W01, Roten 7K

TB68 O-RING Mechanical seal replace John Crane 80 (DF/ FP), AES W01, Roten 7K

TB68 O-RING Mechanical seal replace John Crane 80 (DF/ FP), AES W01, Roten 7K
TB68 O-RING Mechanical seal replace John Crane 80 (DF/ FP), AES W01, Roten 7KTB68 O-RING Mechanical seal replace John Crane 80 (DF/ FP), AES W01, Roten 7KTB68 O-RING Mechanical seal replace John Crane 80 (DF/ FP), AES W01, Roten 7KTB68 O-RING Mechanical seal replace John Crane 80 (DF/ FP), AES W01, Roten 7KTB68 O-RING Mechanical seal replace John Crane 80 (DF/ FP), AES W01, Roten 7K
CategoriesO-ring Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-03-23
Detail Information

Description:

Replacement to:

John Crane 80 (DF/ FP) seal

Aesseal W01 seal

Flowserve 168 seal

Latty T510

Roplan 800/ 850 seal

Roten 7K seal

Sterling 280 seal


Operational Conditions:

Temperature:-40℃ to +200℃

Pressure: ≤0.8MPa

Speed: ≤18m/s

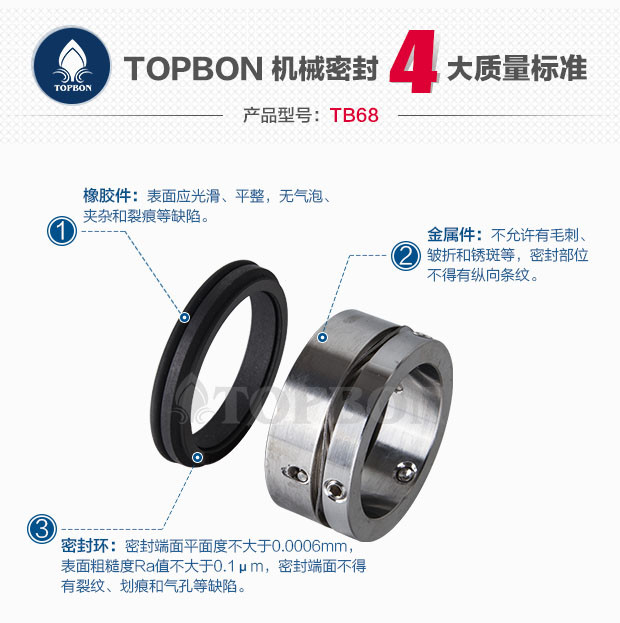

Materials:

Stationary Ring: Silicon Carbide, TC, Carbon

Rotary Ring: TC,Steel

Secondary Seal:NBR,EPDM,Viton

Spring and Metal Parts:Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

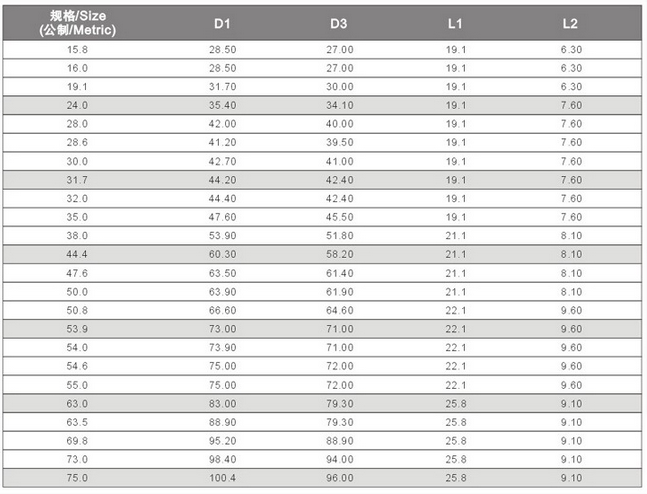

Size:
