TB155/155A O-RING Mechanical Seal replace Burgmann BT-FN

TB155/155A O-RING Mechanical Seal replace Burgmann BT-FN

TB155/155A O-RING Mechanical Seal replace Burgmann BT-FN
TB155/155A O-RING Mechanical Seal replace Burgmann BT-FNTB155/155A O-RING Mechanical Seal replace Burgmann BT-FNTB155/155A O-RING Mechanical Seal replace Burgmann BT-FNTB155/155A O-RING Mechanical Seal replace Burgmann BT-FNTB155/155A O-RING Mechanical Seal replace Burgmann BT-FN
CategoriesElastomer Bellow Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-06-17
Detail Information

Description:

TB155/155A Mechanical Seal

Replacement to:

Burgmann BT-FN


Operational Conditions:

Temperature: -20℃ to +150℃

Pressure: ≤1.0MPa

Speed: ≤10m/s


Materials:

Stationary Ring: Carbon, Silicon Carbide

Rotary Ring: Ceramic, Silicon Carbide

Secondary Seal: NBR, EPDM, Viton

Spring and Metal Parts: Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

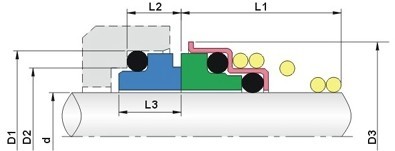

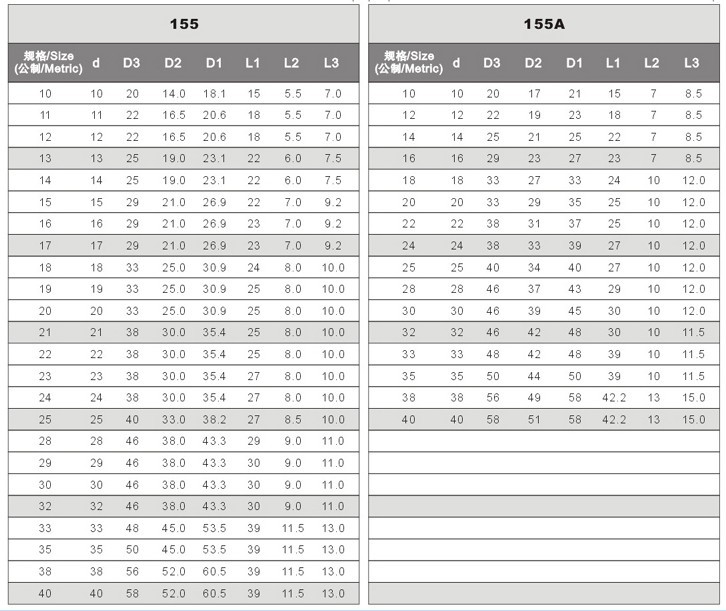

Size:




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.

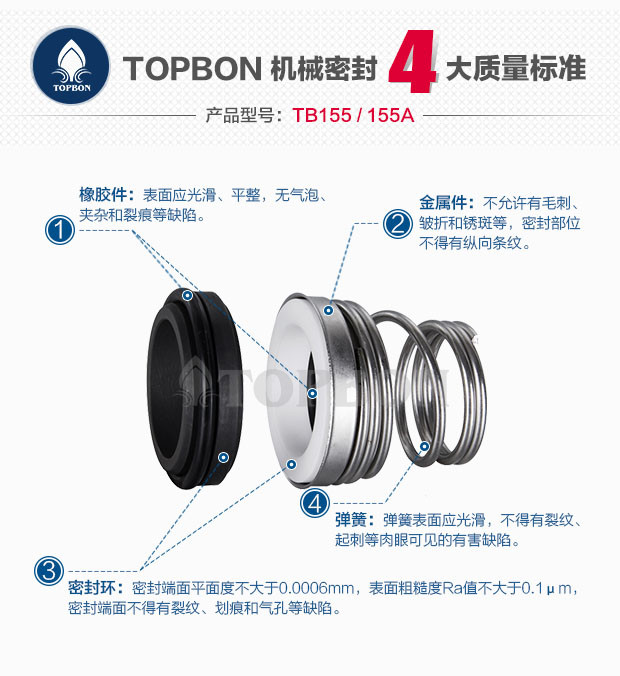

4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .
