TBM2N O-RING Mechanical Seal replace Burgmann M2N, AES T07D

TBM2N O-RING Mechanical Seal replace Burgmann M2N, AES T07D

TBM2N  O-RING Mechanical Seal replace Burgmann M2N, AES T07D
TBM2N  O-RING Mechanical Seal replace Burgmann M2N, AES T07DTBM2N  O-RING Mechanical Seal replace Burgmann M2N, AES T07DTBM2N  O-RING Mechanical Seal replace Burgmann M2N, AES T07DTBM2N  O-RING Mechanical Seal replace Burgmann M2N, AES T07DTBM2N  O-RING Mechanical Seal replace Burgmann M2N, AES T07D
CategoriesO-ring Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-01-20
Detail Information

Description:

TBM2N Mechanical Seal

Replacement to:-

Burgmann M2N seal

Aesseal T07D

Roten UNITEN 22 seal

Hecker HN 400Aseal

Operational Conditions:

Temperature: -20℃ to +180℃

Pressure: ≤1.0MPa

Speed: ≤15m/s


Seat Type:

Standard: TBG9

Alternative: TBG6, TBG4


Materials:

Stationary Ring: Ceramic,Silicon Carbide,TC,Carbon

Rotary Ring:Carbon, Silicon Carbide,TC

Secondary Seal:NBR,EPDM,Viton,PTFE

Spring and Metal Parts:Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

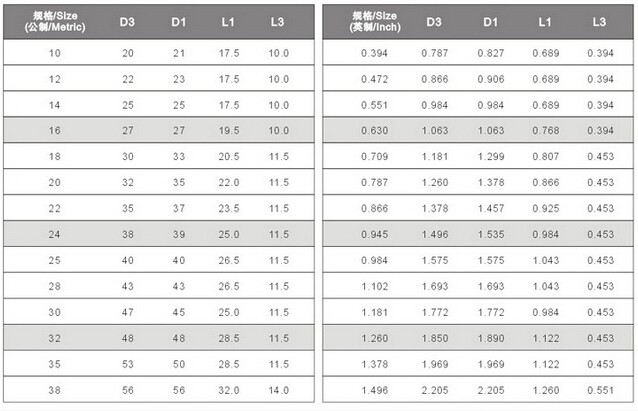

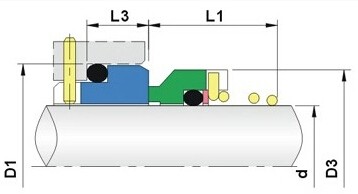

Size:




Packing & Shipping
