TBM74D O-RING Mechanical Seal replace Burgmann H74-D

TBM74D O-RING Mechanical Seal replace Burgmann H74-D

TBM74D O-RING Mechanical Seal replace Burgmann H74-D
TBM74D O-RING Mechanical Seal replace Burgmann H74-DTBM74D O-RING Mechanical Seal replace Burgmann H74-DTBM74D O-RING Mechanical Seal replace Burgmann H74-DTBM74D O-RING Mechanical Seal replace Burgmann H74-DTBM74D O-RING Mechanical Seal replace Burgmann H74-D
CategoriesO-ring Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-01-20
Detail Information

Description:

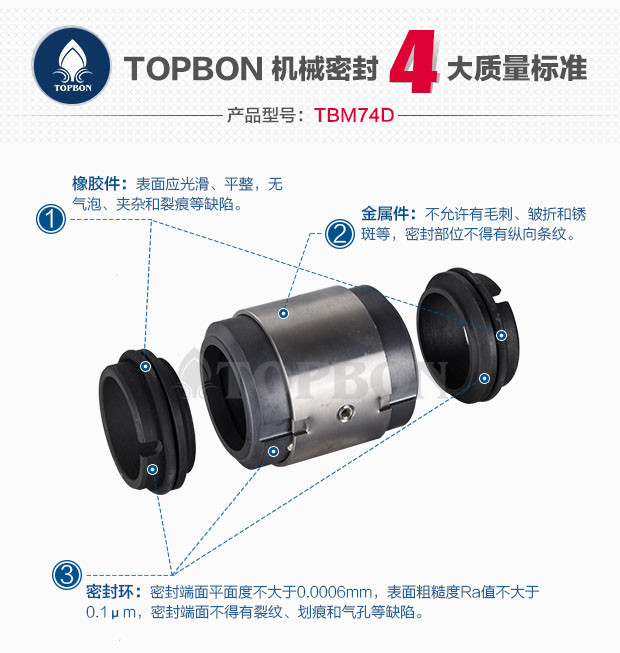

TBM74D mechanical seal

For industrial pumps

Replacing the mechanical seal of Burgmann H74-D

Burgmann M74-D


Operational Conditions:

Temperature: -20℃ to +180℃

Pressure: ≤2.5MPa

Speed: ≤15m/s


Seat Type:

Standard: TBG92

Alternative: TBG6, TBG4, TBG9


Materials:

Stationary Ring: Ceramic,Silicon Carbide,TC,Carbon

Rotary Ring:Carbon, Silicon Carbide,TC

Secondary Seal:NBR,EPDM,Viton,PTFE

Spring and Metal Parts:Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

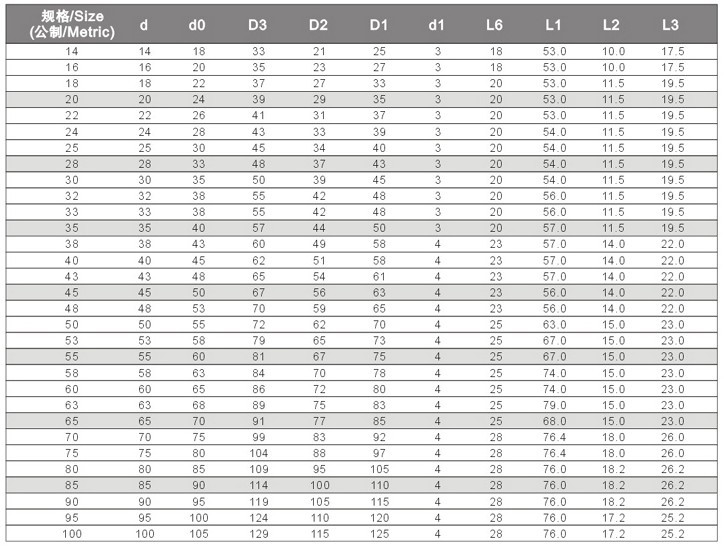

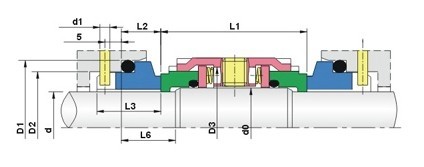

Size:




Packing & Shipping
