TBMTN O-RING mechanical seal replace Burgmann M7N

TBMTN O-RING mechanical seal replace Burgmann M7N

TBMTN O-RING mechanical seal replace Burgmann M7N
TBMTN O-RING mechanical seal replace Burgmann M7NTBMTN O-RING mechanical seal replace Burgmann M7NTBMTN O-RING mechanical seal replace Burgmann M7NTBMTN O-RING mechanical seal replace Burgmann M7NTBMTN O-RING mechanical seal replace Burgmann M7N
CategoriesO-ring Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-01-20
Detail Information

Description:

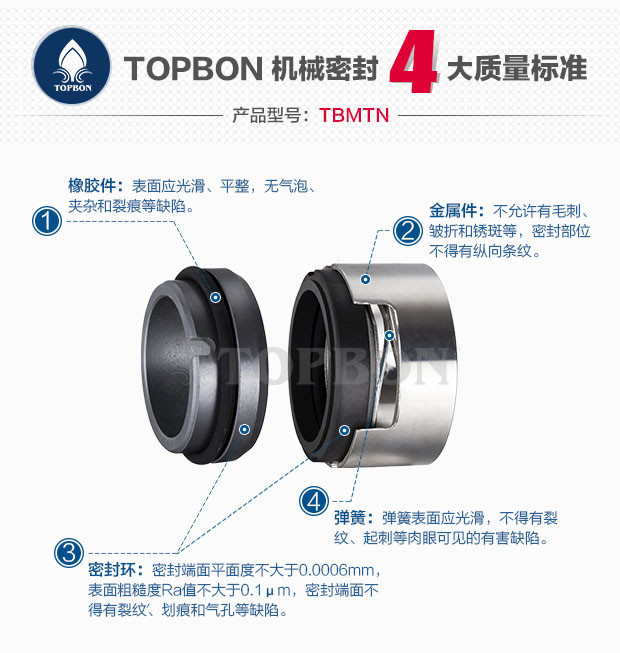

TBMTN mechanical seal


For industrial pumps


Replacing the mechanical seal of Burgmann M7N


Operational Conditions:

Temperature: -20℃ to +190℃

Pressure: ≤1.2MPa

Speed: ≤15m/s


Seat Type:

Standard: TBG9

Alternative: TBG6, TBG4


Materials:

Stationary Ring: Ceramic,Silicon Carbide,TC,Carbon

Rotary Ring:Carbon, Silicon Carbide,TC

Secondary Seal:NBR,EPDM,Viton,PTFE

Spring and Metal Parts:Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

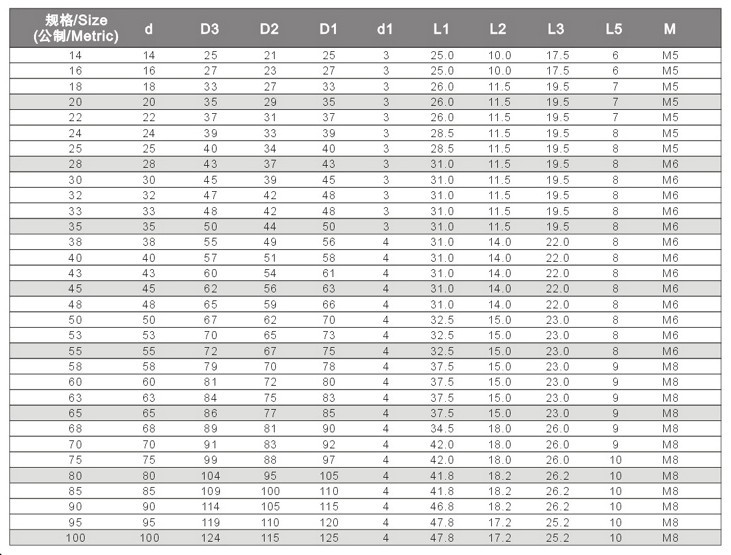

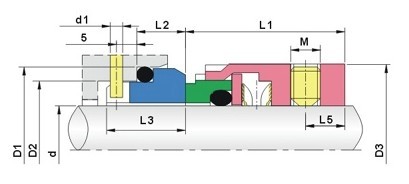

Size:
