TB6 Elastomer Bellow mechanical seal

TB6 Elastomer Bellow mechanical seal

TB6 Elastomer Bellow mechanical seal
TB6 Elastomer Bellow mechanical sealTB6 Elastomer Bellow mechanical sealTB6 Elastomer Bellow mechanical sealTB6 Elastomer Bellow mechanical sealTB6 Elastomer Bellow mechanical seal
CategoriesElastomer Bellow Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-03-23
Detail Information

Description:

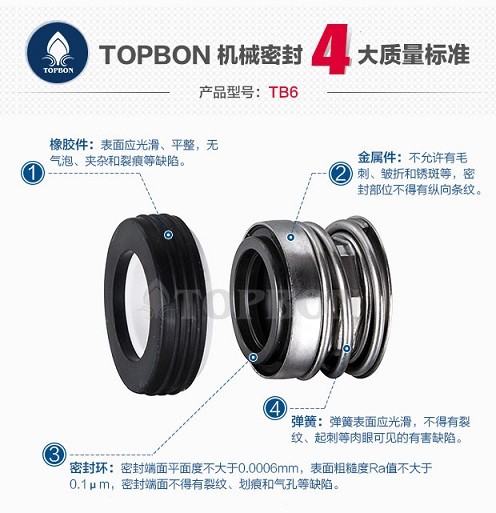

TB6 mechanical seal

for industrial pump,


replace the mechanical seal of Burgmann and John Crane


Operational Conditions:

Temperature: -20℃ to +120℃

Pressure: ≤1.4MPa

Speed: ≤15m/s


Materials:

Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide

Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide

Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

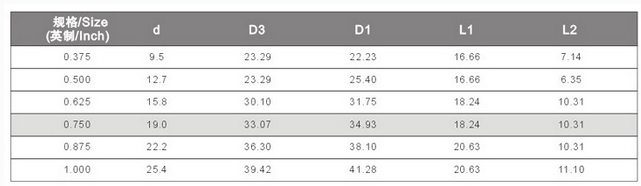

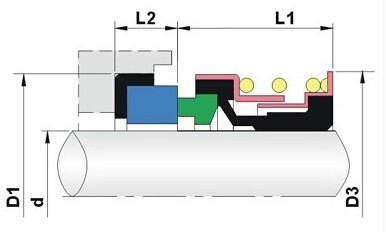

Size:
