TB20/20T Elastomer Bellow Mechanical Seal replace John Crane 2(N SEAT), AES P02/P02T, VULCAN 20

TB20/20T Elastomer Bellow Mechanical Seal replace John Crane 2(N SEAT), AES P02/P02T, VULCAN 20

TB20/20T Elastomer Bellow Mechanical Seal replace John Crane 2(N SEAT), AES P02/P02T, VULCAN 20
TB20/20T Elastomer Bellow Mechanical Seal replace John Crane 2(N SEAT), AES P02/P02T, VULCAN 20TB20/20T Elastomer Bellow Mechanical Seal replace John Crane 2(N SEAT), AES P02/P02T, VULCAN 20TB20/20T Elastomer Bellow Mechanical Seal replace John Crane 2(N SEAT), AES P02/P02T, VULCAN 20TB20/20T Elastomer Bellow Mechanical Seal replace John Crane 2(N SEAT), AES P02/P02T, VULCAN 20
CategoriesElastomer Bellow Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-08-22
Detail Information

Description:

TB20, 20T Mechanical Seal

Replacement to:

Burgmann MG920/ D1-G50 seal

John Crane type 2 seal

Flowserve 200 seal

Latty T200 seal

Roten RB02 seal

Roten 21 seal

Sealol 43 CE short seal

Sterling 212 seal

Operational Conditions:

Temperature: -20℃ to +120℃

Pressure: ≤1.0MPa

Speed: ≤15m/s


Seat Type:

Standard: TBCT20

Alternative: TBCT24, TBCG60


Materials:

Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide

Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide

Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

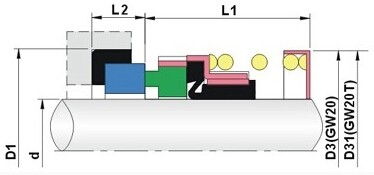

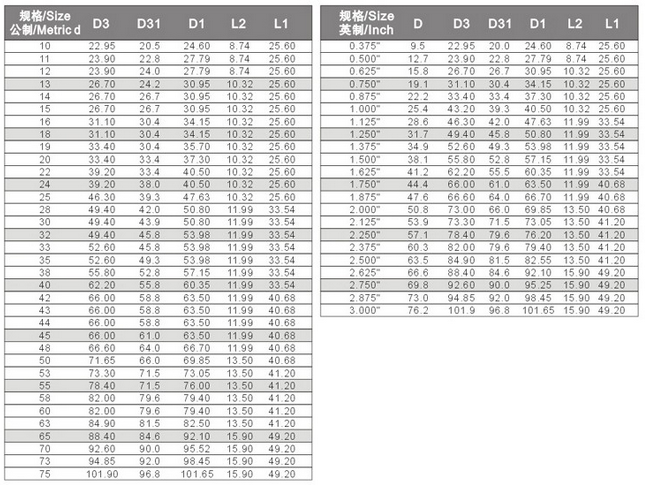

Size:




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.

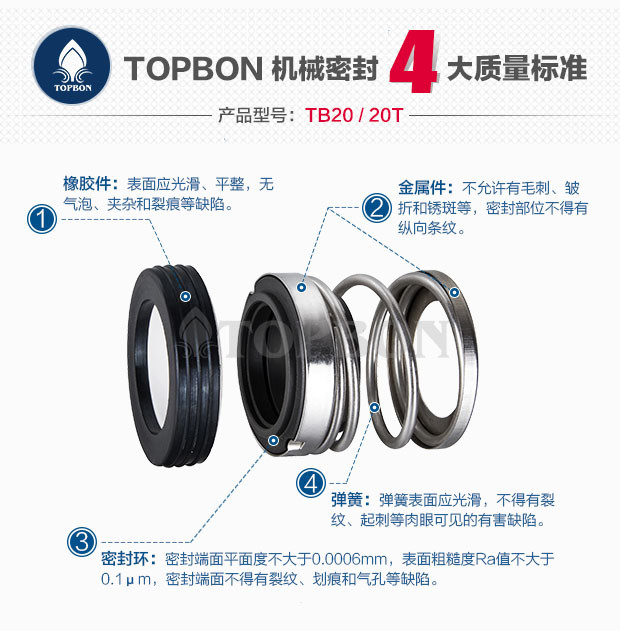

4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .
