TB140/142/143 Elastomer Bellow mechanical seal replace VULCAN 14/142/143

TB140/142/143 Elastomer Bellow mechanical seal replace VULCAN 14/142/143

TB140/142/143 Elastomer Bellow mechanical seal replace VULCAN 14/142/143
TB140/142/143 Elastomer Bellow mechanical seal replace VULCAN 14/142/143TB140/142/143 Elastomer Bellow mechanical seal replace VULCAN 14/142/143TB140/142/143 Elastomer Bellow mechanical seal replace VULCAN 14/142/143TB140/142/143 Elastomer Bellow mechanical seal replace VULCAN 14/142/143TB140/142/143 Elastomer Bellow mechanical seal replace VULCAN 14/142/143
CategoriesElastomer Bellow Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-08-22
Detail Information

Description:

TB140 mechanical seal

for industrial pump,

replace the mechanical seal of Vulcan 14/142/143

Operational Conditions:

Temperature: -40℃ to +150℃

Pressure: ≤1.0MPa

Speed: ≤15m/s


Materials:

Stationary Ring:Silicon Carbide  Reaction bonded,Resin Impregnated Carbon Graphite(Furan),Ceramic(Alumina)

Rotary Ring:Silicon Carbide  Reaction bonded,Resin Impregnated Carbon Graphite(Furan),Ni-binder Tungsten Carbide

Secondary Seal:Nitrile(NBR),Ethylene Propylene(EPDM),Fluorocarbon Rubber(Viton)

Spring and Metal Parts:Stainless Steel,Stainless Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

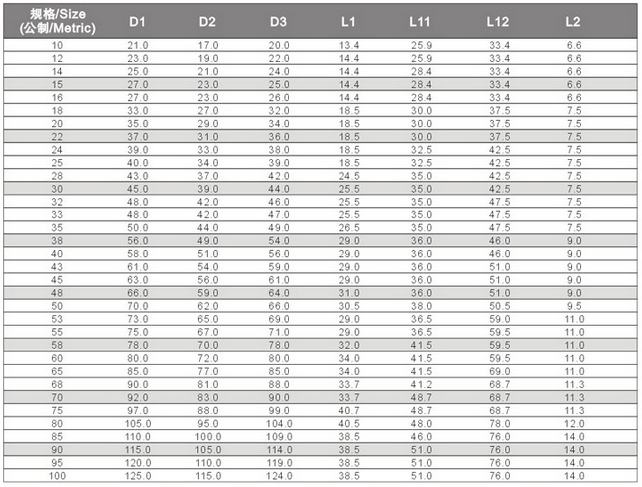

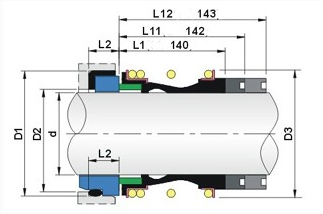

Size:




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.

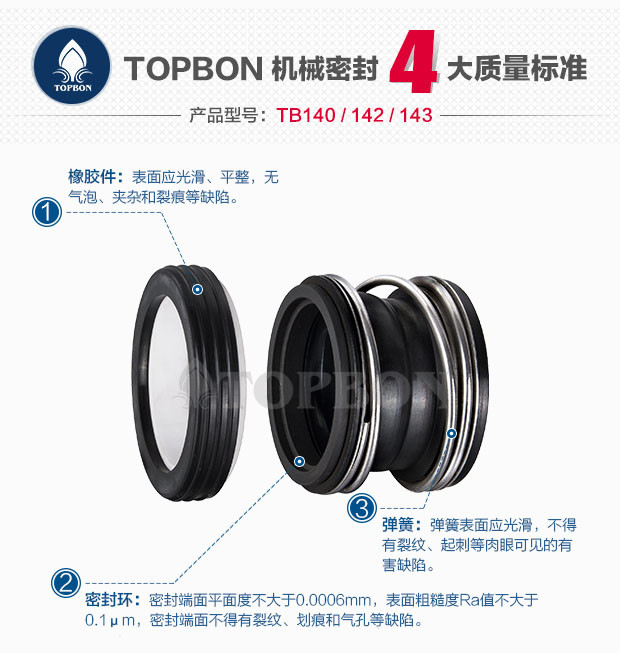

4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .




Packing & Shipping
