TB210 Elastomer Bellow Mechanical Seal replace John Crane 2100, AES B05

TB210 Elastomer Bellow Mechanical Seal replace John Crane 2100, AES B05

TB210 Elastomer Bellow Mechanical Seal replace John Crane 2100, AES B05
TB210 Elastomer Bellow Mechanical Seal replace John Crane 2100, AES B05TB210 Elastomer Bellow Mechanical Seal replace John Crane 2100, AES B05TB210 Elastomer Bellow Mechanical Seal replace John Crane 2100, AES B05TB210 Elastomer Bellow Mechanical Seal replace John Crane 2100, AES B05TB210 Elastomer Bellow Mechanical Seal replace John Crane 2100, AES B05
CategoriesElastomer Bellow Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-03-23
Detail Information

Description:

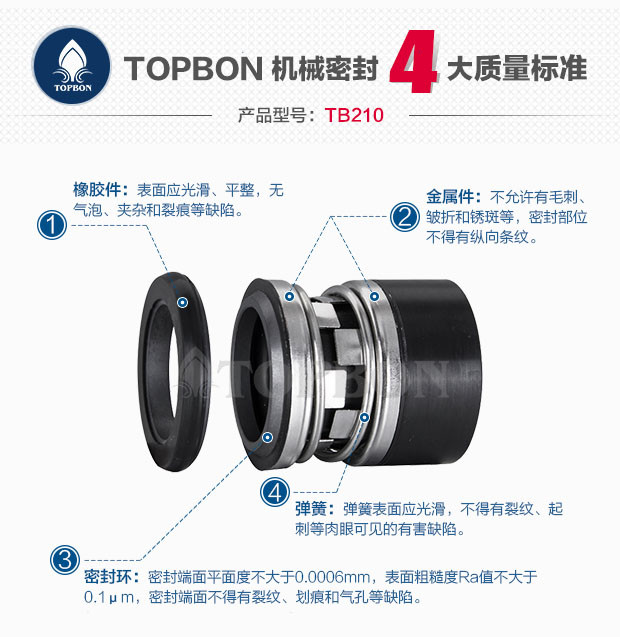

TB210 Mechanical Seal

Replacement to:

John Crane 2100

Aesseal B05 seal

Flowserve Pac-Seal 140

Sterling 540


Operational Conditions:

Temperature: -20℃ to +120℃

Pressure: ≤1.5MPa

Speed: ≤18m/s


Seat Type:

Standard:TBL210

Alternative:TBG60,TBBS


Materials:

Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide

Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide

Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

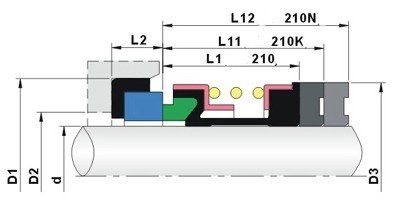

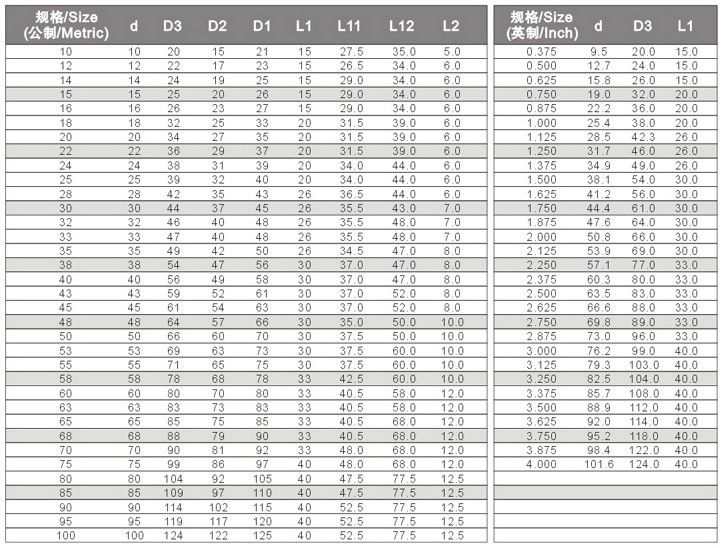

Size:




Packing & Shipping
