TB301 Elastomer Bellow mechanical seal

TB301 Elastomer Bellow mechanical seal

TB301 Elastomer Bellow mechanical seal
TB301 Elastomer Bellow mechanical sealTB301 Elastomer Bellow mechanical sealTB301 Elastomer Bellow mechanical sealTB301 Elastomer Bellow mechanical seal
CategoriesElastomer Bellow Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-08-22
Detail Information

Description:

TB301 mechanical seal

for blower pump, diving pump,circulating pump,

replace the mechanical seal of Burgmann and John Crane


Operational Conditions:

Temperature: -20℃ to +120℃

Pressure: ≤0.6MPa

Speed: ≤10m/s


Materials:

Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide

Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide

Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)


Applications:

Clean water,

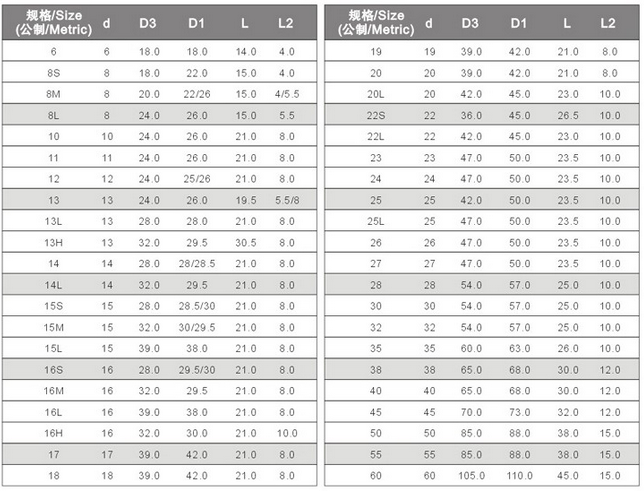

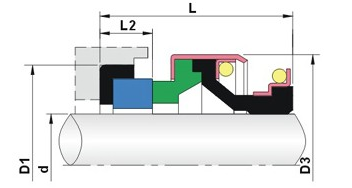

Size:




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.

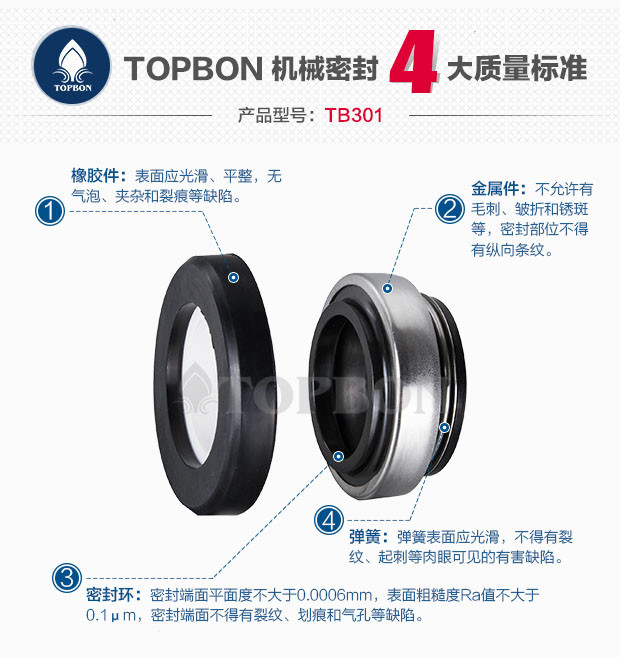

4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .

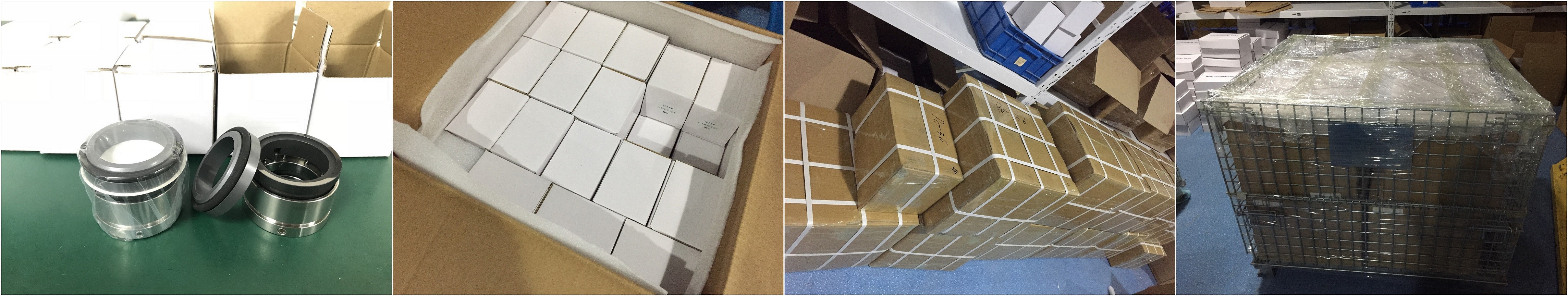

Packing & Shipping
