Description:

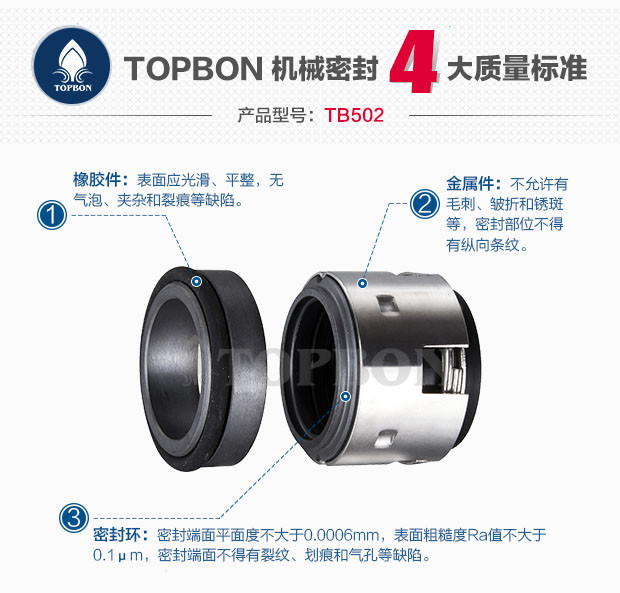

TB502 Mechanical Seal

Replacement to:

John Crane type 502 seal

Aesseal B07 seal

Sterling 524 seal

Vulcan 1724 seal

Operational Conditions:

Temperature: -20℃ to +120℃

Pressure: ≤2.5MPa

Speed: ≤15m/s


Seat Type:

Standard:TBBO

Alternative:TBBP


Materials:

Stationary Ring: Ceramic (Alumina), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless, Ni-binder Tungsten Carbide, Co-binder Tungsten Carbide

Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded, Co-binder Tungsten Carbide, Ni-binder Tungsten Carbide

Secondary Seal: Nitrile (NBR), Ethylene Propylene (EPDM), Fluorocarbon Rubber (Viton)


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

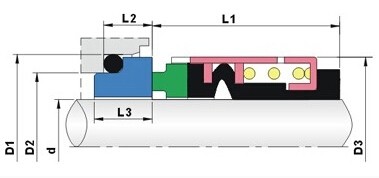

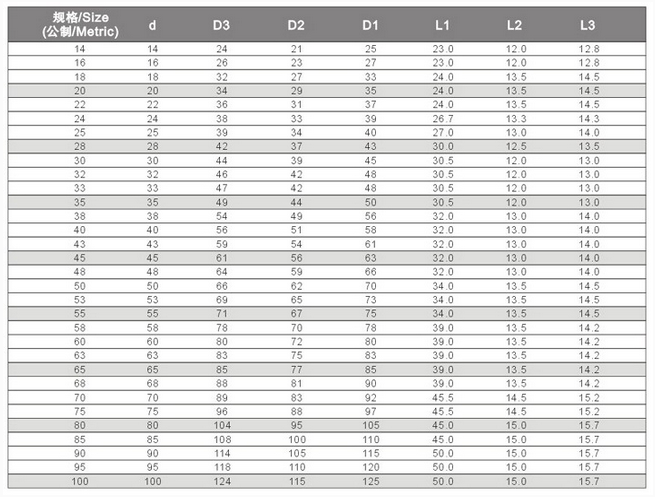

Size:
