TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01

TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01

TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01
TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01
CategoriesElastomer Bellow Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-08-22
Detail Information

Description:

TBMG1MG12/MG13/MGS20 Mechanical Seal


Replacement to:

Burgmann MG1 seal / MG12  seal /MG13 seal/MGS20 seal & G60  stationary

Aesseal B02/B012/B013 seal

Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193

Hecker HN 410SU / Hecker HN 410KU / Hecker HN 410NU

Roten L3 / Roten L3k / Roten L3

Vulcan 19 / Vulcan 192/ Vulcan 193

Operational Conditions:

Temperature: -20℃ to +120℃

Pressure: ≤1.2MPa

Speed: ≤10m/s


Seat Type:

Standard:TBCG60

Alternative:TBCT20,TBG6,TBG9


Materials:

Stationary Ring:,Ni-binder Tungsten Carbide,Silicon Carbide  Reaction Bonded,Ceramic(Alumina),Silicon Carbide   Sintered Pressureless


Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,Silicon Carbide  Sintered Pressureless,Silicon Carbide  Reaction Bonded Secondary Seal:Fluorocarbon Rubber(Viton),Nitrile(NBR),Ethylene Propylene(EPDM)

Spring and Metal Parts:Stainless Steel,Stainless Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids


Size:




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.

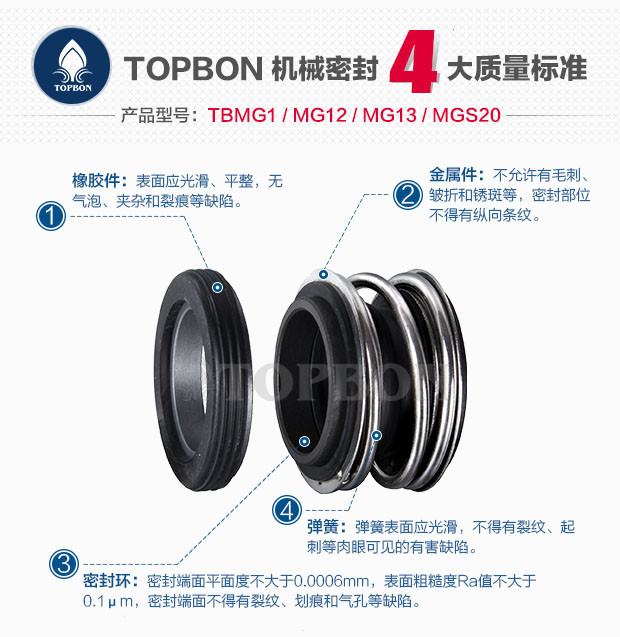

4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .
