TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01

TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01

TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01
TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01TBMG1/MG12/MG13/MGS20 Elastomer Bellow Mechanical Seal replace Burgmann MG1/12/13/S20, AES B02/B012/B01
CategoriesElastomer Bellow Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-01-20
Detail Information

Description:

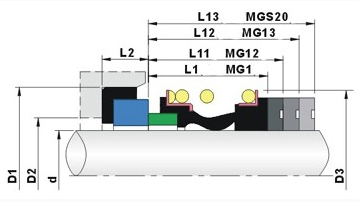

TBMG1MG12/MG13/MGS20 Mechanical Seal


Replacement to:

Burgmann MG1 seal / MG12  seal /MG13 seal/MGS20 seal & G60  stationary

Aesseal B02/B012/B013 seal

Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193

Hecker HN 410SU / Hecker HN 410KU / Hecker HN 410NU

Roten L3 / Roten L3k / Roten L3

Vulcan 19 / Vulcan 192/ Vulcan 193

Operational Conditions:

Temperature: -20℃ to +120℃

Pressure: ≤1.2MPa

Speed: ≤10m/s


Seat Type:

Standard:TBCG60

Alternative:TBCT20,TBG6,TBG9


Materials:

Stationary Ring:,Ni-binder Tungsten Carbide,Silicon Carbide  Reaction Bonded,Ceramic(Alumina),Silicon Carbide   Sintered Pressureless


Rotary Ring:Resin Impregnated Carbon Graphite(Furan),Antimony Impreg. Carbon Graphite,Silicon Carbide  Sintered Pressureless,Silicon Carbide  Reaction Bonded Secondary Seal:Fluorocarbon Rubber(Viton),Nitrile(NBR),Ethylene Propylene(EPDM)

Spring and Metal Parts:Stainless Steel,Stainless Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

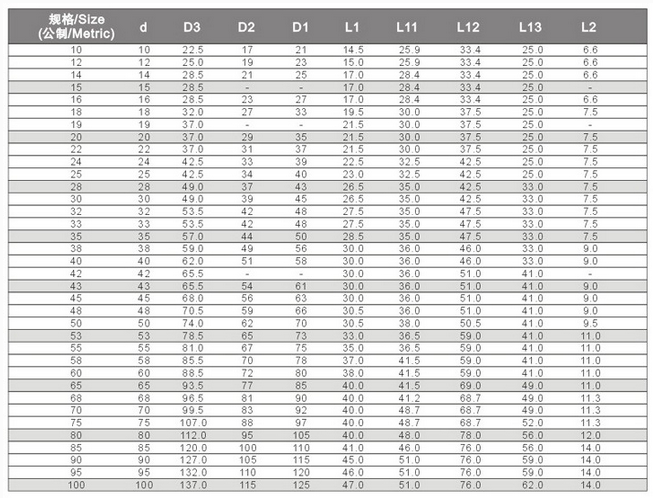

Size:
