TB24 Elastomer Bellow Mechanical Seal replace BURGMANN MG912, AES P03, VULCAN 24, JOHN CRANE 521

TB24 Elastomer Bellow Mechanical Seal replace BURGMANN MG912, AES P03, VULCAN 24, JOHN CRANE 521

TB24 Elastomer Bellow  Mechanical Seal replace BURGMANN MG912, AES P03, VULCAN 24, JOHN CRANE 521
TB24 Elastomer Bellow  Mechanical Seal replace BURGMANN MG912, AES P03, VULCAN 24, JOHN CRANE 521TB24 Elastomer Bellow  Mechanical Seal replace BURGMANN MG912, AES P03, VULCAN 24, JOHN CRANE 521TB24 Elastomer Bellow  Mechanical Seal replace BURGMANN MG912, AES P03, VULCAN 24, JOHN CRANE 521TB24 Elastomer Bellow  Mechanical Seal replace BURGMANN MG912, AES P03, VULCAN 24, JOHN CRANE 521TB24 Elastomer Bellow  Mechanical Seal replace BURGMANN MG912, AES P03, VULCAN 24, JOHN CRANE 521
CategoriesElastomer Bellow Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-08-22
Detail Information

Description:

TB912 mechanical seal,for blower pump, diving pump,circulating pump,


replace the mechanical seal of Burgmann MG912

Operational Conditions:

Temperature: -20℃ to +120℃

Pressure: ≤1.0MPa

Speed: ≤10m/s


Seat Type:

Standard: GWCG60


Materials:

Stationary Ring: Silicon Carbide  Reaction Bonded,Ceramic(Alumina),Silicon Carbide   Sintered Pressureless,Ni-binder Tungsten


Rotary Ring: Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide  Reaction Bonded,Silicon Carbide  Sintered Pressureless,Ni-binder Tungsten Carbide

Spring and Metal Parts:Stainless Steel,Stainless Steel

Secondary Seal:Fluorocarbon Rubber(Viton),Nitrile(NBR),Ethylene


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

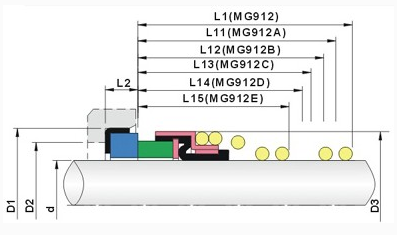

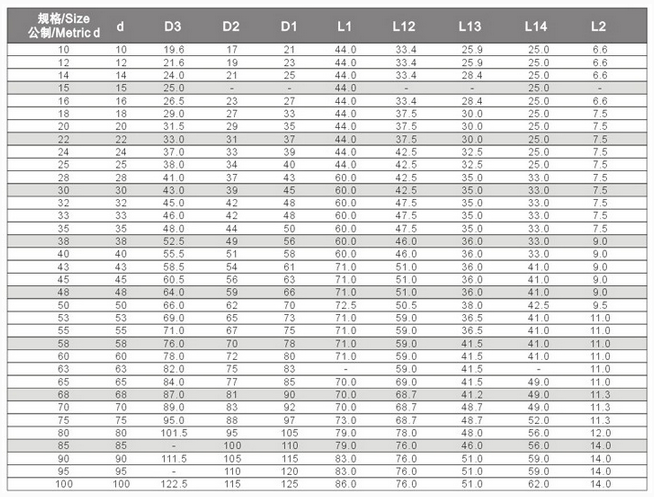

Size:




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.

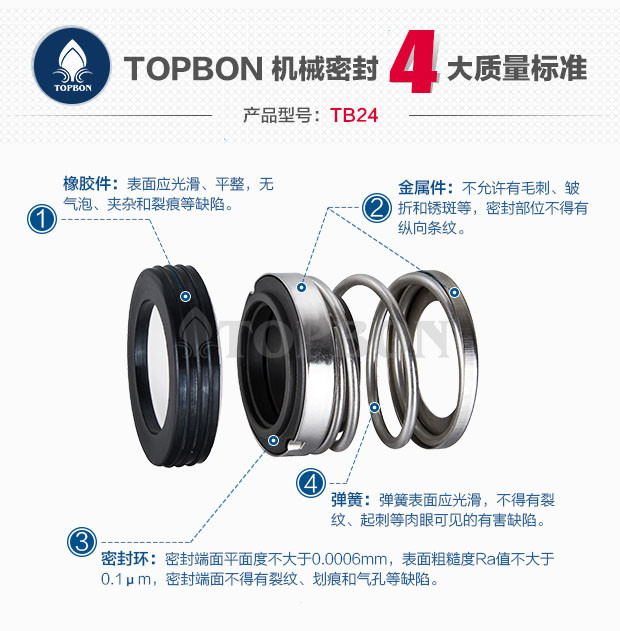

4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .
