TB9B PTFE Wedge Mechanical Seal replace AES M02, 1609B, JOHN CRANE 9B, STERLING 290B

TB9B PTFE Wedge Mechanical Seal replace AES M02, 1609B, JOHN CRANE 9B, STERLING 290B

TB9B PTFE Wedge Mechanical Seal replace AES M02, 1609B, JOHN CRANE 9B, STERLING 290B
TB9B PTFE Wedge Mechanical Seal replace AES M02, 1609B, JOHN CRANE 9B, STERLING 290BTB9B PTFE Wedge Mechanical Seal replace AES M02, 1609B, JOHN CRANE 9B, STERLING 290BTB9B PTFE Wedge Mechanical Seal replace AES M02, 1609B, JOHN CRANE 9B, STERLING 290BTB9B PTFE Wedge Mechanical Seal replace AES M02, 1609B, JOHN CRANE 9B, STERLING 290BTB9B PTFE Wedge Mechanical Seal replace AES M02, 1609B, JOHN CRANE 9B, STERLING 290B
CategoriesPTFE Wedge Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-06-17
Detail Information

Description:

TB9B Mechanical Seal

Replacement to:

Vulcan T109B

John Crane T9B

Aesseal M02 seal

Sterling 290B seal

Operational Conditions:

Temperature: -40℃ to +250℃

Pressure: ≤2.5MPa

Speed: ≤15m/s


Seat Type:

Standard:TB16

Alternative:TBN,TBT21


Materials:

Stationary Ring: Silicon Carbide  Reaction Bonded,Ceramic(Alumina),Silicon Carbide   Sintered Pressureless,Ni-binder Tungsten


Rotary Ring: Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide  Reaction Bonded,Silicon Carbide  Sintered Pressureless,Ni-binder Tungsten Carbide

Spring and Metal Parts:Stainless Steel,Stainless Steel ,,Hastelloy C-4 Alloy

Secondary Seal:Pure PTFE


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

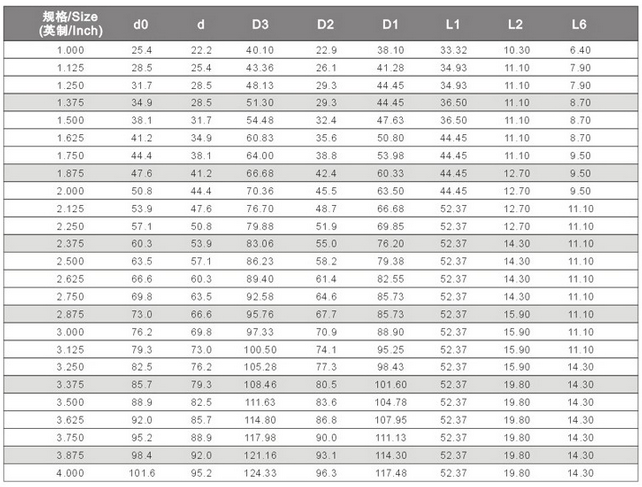

Size:




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.


4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .

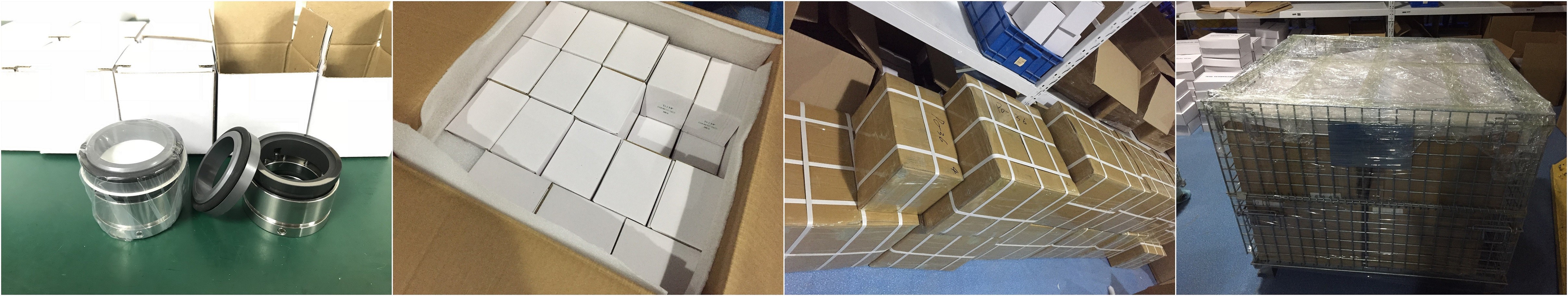

Packing & Shipping
