TB59U PTFE Wedge Mechanical Seal replace AES M03, VULACN 1659, BURGMANN BT-C56.KU, JOHN CRANE 59U, STERLING 259

TB59U PTFE Wedge Mechanical Seal replace AES M03, VULACN 1659, BURGMANN BT-C56.KU, JOHN CRANE 59U, STERLING 259

TB59U PTFE Wedge Mechanical Seal replace AES M03, VULACN 1659, BURGMANN BT-C56.KU, JOHN CRANE 59U, STERLING 259
TB59U PTFE Wedge Mechanical Seal replace AES M03, VULACN 1659, BURGMANN BT-C56.KU, JOHN CRANE 59U, STERLING 259TB59U PTFE Wedge Mechanical Seal replace AES M03, VULACN 1659, BURGMANN BT-C56.KU, JOHN CRANE 59U, STERLING 259TB59U PTFE Wedge Mechanical Seal replace AES M03, VULACN 1659, BURGMANN BT-C56.KU, JOHN CRANE 59U, STERLING 259TB59U PTFE Wedge Mechanical Seal replace AES M03, VULACN 1659, BURGMANN BT-C56.KU, JOHN CRANE 59U, STERLING 259TB59U PTFE Wedge Mechanical Seal replace AES M03, VULACN 1659, BURGMANN BT-C56.KU, JOHN CRANE 59U, STERLING 259
CategoriesPTFE Wedge Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-03-21
Detail Information

Description:

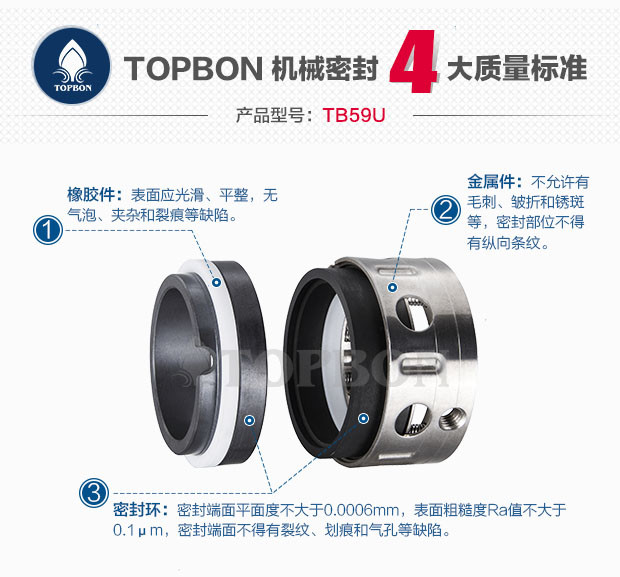

TB59U Mechanical Seal

Replacement to:

Burgmann BT-C56.KU seal

John Crane T59U seal

Aesseal M03 seal

Sterling 259 seal

Operational Conditions:

Temperature: -40℃ to +250℃

Pressure: ≤1.2MPa

Speed: ≤15m/s


Seat Type:

Standard:TBBP

Alternative:TBBO


Materials:

Stationary Ring: Silicon Carbide  Reaction Bonded,Ceramic(Alumina),Silicon Carbide   Sintered Pressureless,Ni-binder Tungsten


Rotary Ring: Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite(Furan),Silicon Carbide  Reaction Bonded,Silicon Carbide  Sintered Pressureless,Ni-binder Tungsten Carbide



Spring and Metal Parts:Stainless Steel,Stainless Steel ,,Hastelloy C-4 Alloy


Secondary Seal:Pure PTFE


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

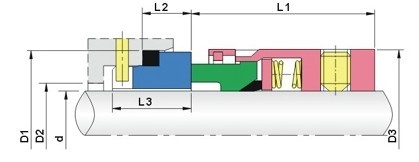

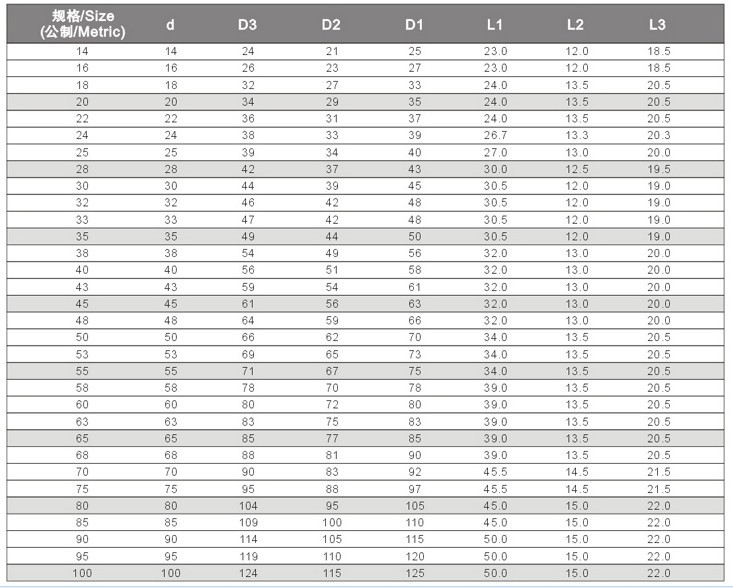

Size:
