TBGU1 Cartidge Mechanical Seal replace AES CURC

TBGU1 Cartidge Mechanical Seal replace AES CURC

TBGU1 Cartidge Mechanical Seal replace AES CURC
TBGU1 Cartidge Mechanical Seal replace AES CURCTBGU1 Cartidge Mechanical Seal replace AES CURCTBGU1 Cartidge Mechanical Seal replace AES CURCTBGU1 Cartidge Mechanical Seal replace AES CURCTBGU1 Cartidge Mechanical Seal replace AES CURC
CategoriesCartridge Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-06-17
Detail Information

Description:

TBGU1 Mechanical Seal


Replace the mechanical seal of Aesseal CURC cartridge mechanical seal

Operational Conditions:

Temperature: -20℃ to +210℃

Pressure: ≤2.5MPa

Speed: ≤15m/s


Materials:

Stationary Ring:Silicon Carbide, Carbon ,TC,

Rotary Ring:Carbon ,Silicon Carbide,TC

Secondary Seal:EPDM,Viton,Afias ,kalrez

Spring and Metal Parts:Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

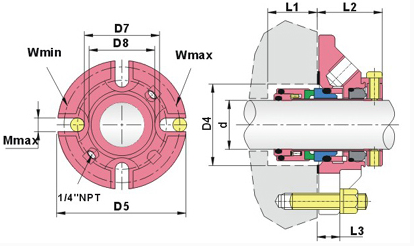

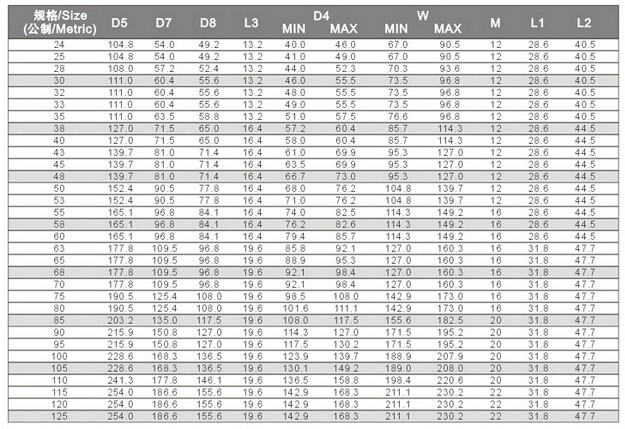

Size:




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.

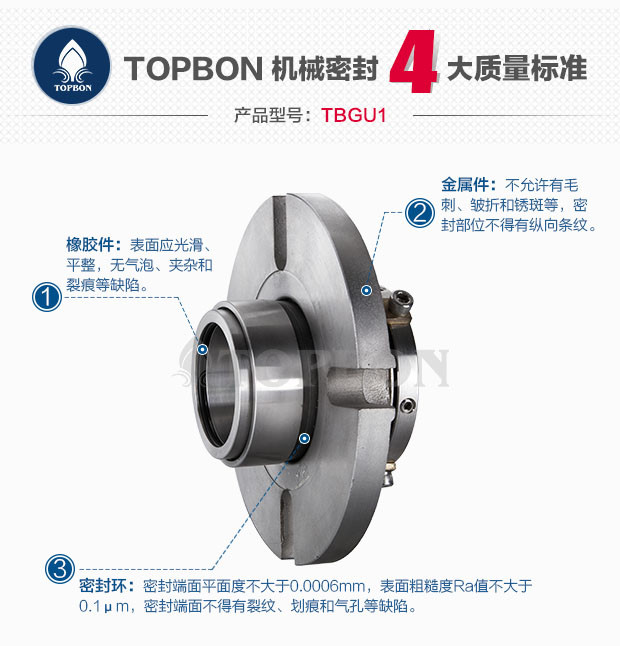

4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .
