TBL9 Cartidge Mechanical Seal replace AES CS

TBL9 Cartidge Mechanical Seal replace AES CS

TBL9  Cartidge Mechanical Seal replace AES CS
TBL9  Cartidge Mechanical Seal replace AES CSTBL9  Cartidge Mechanical Seal replace AES CSTBL9  Cartidge Mechanical Seal replace AES CSTBL9  Cartidge Mechanical Seal replace AES CSTBL9  Cartidge Mechanical Seal replace AES CS
CategoriesCartridge Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-06-17
Detail Information

Description:

TBL9  Mechanical Seal


Replace the mechanical seal of Aesseal CS cartridge mechanical seal

Operational Conditions:

Temperature: -50℃ to +204℃

Pressure: ≤1.1MPa

Speed: ≤15m/s


Materials:

Rotary Ring:Resin Impregnated Carbon Graphite(Furan)

Secondary Seal:Viton,EPDM,NBR,FFKM

Spring and Metal Parts:Stainless Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

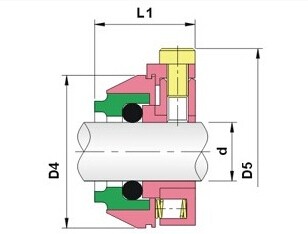

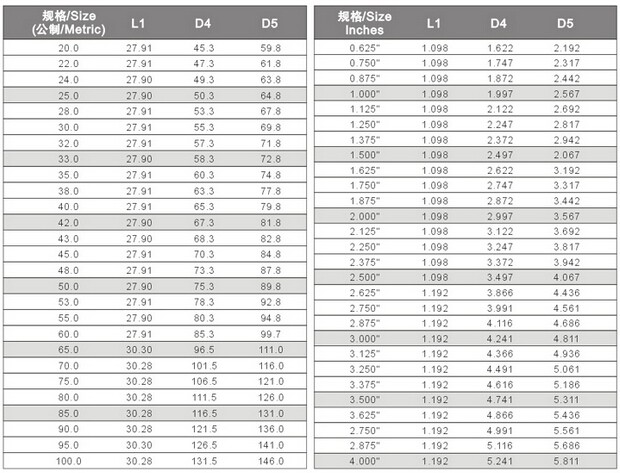

Size:




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.

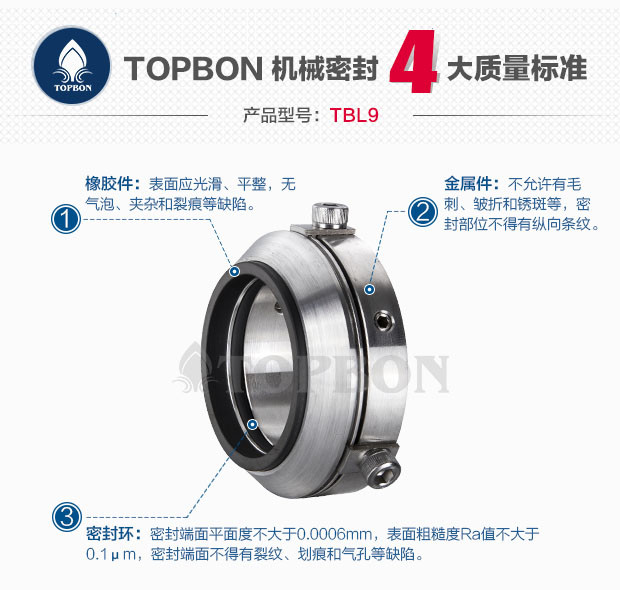

4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .
