TBGLF-4-22MM Mechanical Seal for Grundfos Pump CR, CRN32, CRN45, CRN64, CRN90

TBGLF-4-22MM Mechanical Seal for Grundfos Pump CR, CRN32, CRN45, CRN64, CRN90

TBGLF-4-22MM Mechanical Seal for Grundfos Pump CR, CRN32, CRN45, CRN64, CRN90
TBGLF-4-22MM Mechanical Seal for Grundfos Pump CR, CRN32, CRN45, CRN64, CRN90TBGLF-4-22MM Mechanical Seal for Grundfos Pump CR, CRN32, CRN45, CRN64, CRN90TBGLF-4-22MM Mechanical Seal for Grundfos Pump CR, CRN32, CRN45, CRN64, CRN90TBGLF-4-22MM Mechanical Seal for Grundfos Pump CR, CRN32, CRN45, CRN64, CRN90TBGLF-4-22MM Mechanical Seal for Grundfos Pump CR, CRN32, CRN45, CRN64, CRN90
CategoriesMechanicial Seals For Grundfos Pump
AlbumView larger image
BrandTOPBON
Update Time2019-06-17
Detail Information

Description:

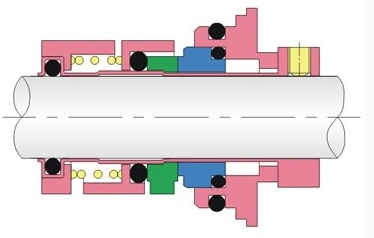

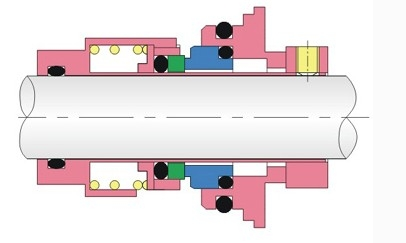

TBGLF-4 is the mounted semi-cartridge seal with a single spring o-ring and push-fit head.

Suitable for Grundfos CR, CRN, and CRI series Pumps


Operational Conditions:

Temperature: -30℃ to +200℃

Pressure: ≤2.5MPa

Speed: ≤25m/s


Materials:

Stationary Ring:TC, Silicon Carbide

Rotary Ring:Carbon ,Silicon Carbide,TC

Secondary Seal:NBR,EPDM,Viton

Bellows:Steel

Spring and Metal Parts:Steel


Size:

22mm




Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.


4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .


Packing & Shipping
