TB950 O-RING Mechanical Seal for AES P08, Vulcan 95, John Crane R00

TB950 O-RING Mechanical Seal for AES P08, Vulcan 95, John Crane R00

TB950 O-RING Mechanical Seal for AES P08, Vulcan 95, John Crane R00
TB950 O-RING Mechanical Seal for AES P08, Vulcan 95, John Crane R00TB950 O-RING Mechanical Seal for AES P08, Vulcan 95, John Crane R00TB950 O-RING Mechanical Seal for AES P08, Vulcan 95, John Crane R00TB950 O-RING Mechanical Seal for AES P08, Vulcan 95, John Crane R00TB950 O-RING Mechanical Seal for AES P08, Vulcan 95, John Crane R00
CategoriesO-ring Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-10-15
Detail Information

Description

TB950 Mechanical Seal

Replacement to:

John Crane R00

Aesseal P08 seal

Roten UNITEN 22 seal

Hecker HN 400Aseal


Operational Conditions:

Temperature:-50℃ to +200℃

Pressure: ≤1 MPa

Speed: ≤20 m/s


Materials:

Stationary Ring: Silicon Carbide, TC, Carbon

Rotary Ring: TC, Steel

Secondary Seal:NBR,EPDM,Viton

Spring and Metal Parts:Steel


Applications:

Clean water,

 sewage water

oil and other moderately corrosive fluids

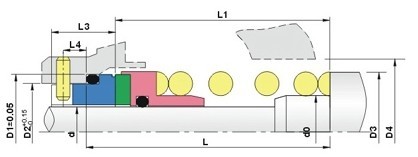

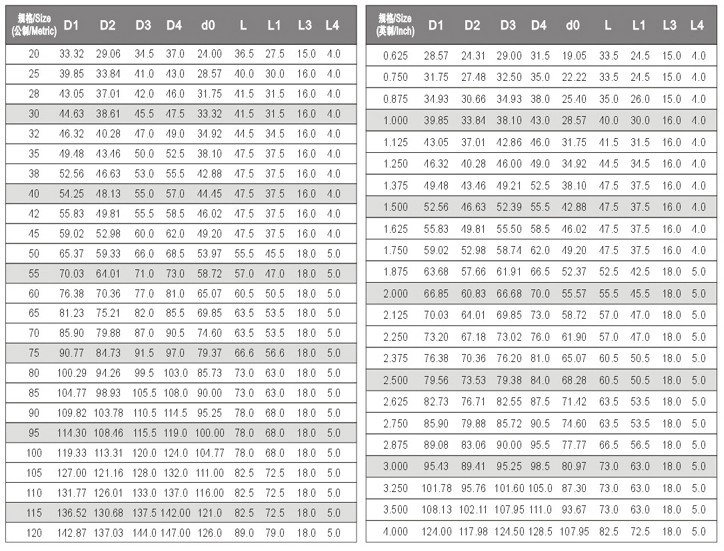

Size:






Product Andvantage Overview:

TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.


4 Quality standards of TOPBON Mechanical Seal :


1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .

2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.

3) Seal ring : seal ring face’s flatness 0.0006MM , seal ring ‘s surface roughness 0.1μm, seal ring  face without crack, scratch,pore and so on.

4) Spring: the surface should be smoothly, without crack, burr .
