TB960 Mechanical Seal
For industrial pumps
Replacing the mechanical seal of Burgmann and John Crane
Temperature：-50℃ to +200℃
Pressure： ≤1 MPa
Speed： ≤20 m/s
Stationary Ring： Silicon Carbide, TC, Carbon
Rotary Ring： TC, Steel
Spring and Metal Parts：Steel
oil and other moderately corrosive fluids
Product Andvantage Overview:
TOPBON can offer high quality products ata competitive price, thanks to the 10 years of experience. A warehouse of 2,000square meters and 20,000 spare parts ready in stock guarantee a delivery timeof 7 days for standard seals. Moreover, TOPBON can also produce mechanicalseals according to customers’ requests. During the years, TOPBON has producedmore than 100 types of non-standard mechanical seals.

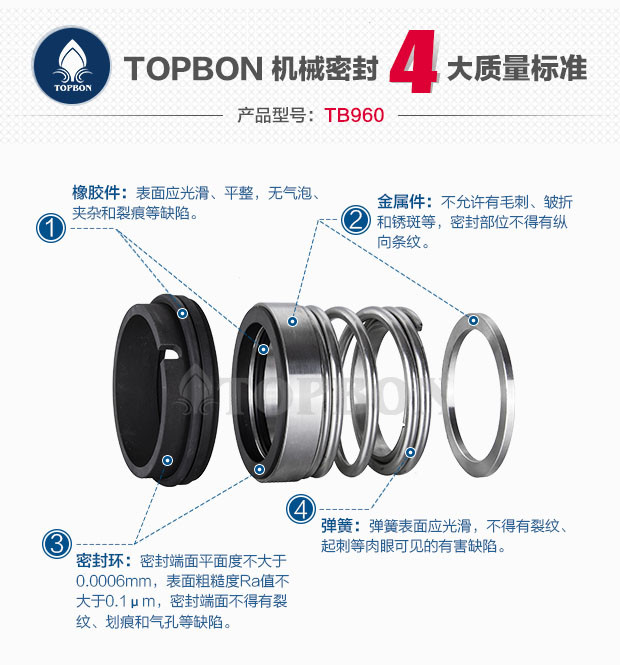

4 Quality standards of TOPBON Mechanical Seal :
1) Rubber: the surface should be smoothly, neat, rift, bubble and so on .
2) Metal parts : without burr, drape, rust, seal parts without longitudinal patterning.
3) Seal ring : seal ring face’s flatness ≤0.0006MM , seal ring ‘s surface roughness ≤0.1μm, seal ring face without crack, scratch,pore and so on.
4) Spring: the surface should be smoothly, without crack, burr .
Packing & Shipping
