TB688 Metal Bellow Mechanical Seal for John Crane 609

TB688 Metal Bellow Mechanical Seal for John Crane 609

TB688  Metal Bellow Mechanical Seal for John Crane 609
TB688  Metal Bellow Mechanical Seal for John Crane 609TB688  Metal Bellow Mechanical Seal for John Crane 609
CategoriesMetal Bellow Mechanical Seals
AlbumView larger image
BrandTOPBON
Update Time2019-01-20
Detail Information

Description:

TB688  Mechanical Seal

For big compressors and industrial pumps

Replacing the mechanical seal of John Crane 609

Operational Conditions:

Temperature: -75℃ to +400℃

Pressure: ≤2.0MPa

Speed: ≤23m/s


Materials:

Stationary Ring:TC, Silicon Carbide

Rotary Ring:Carbon ,Silicon Carbide,TC

Secondary Seal:NBR,EPDM,Viton

Bellows:Steel

Spring and Metal Parts:Steel


Applications:

Oil,

light hydrocarbon,

aromatic Hydrocarbon,

organic solvents,

week acids,

ammonia

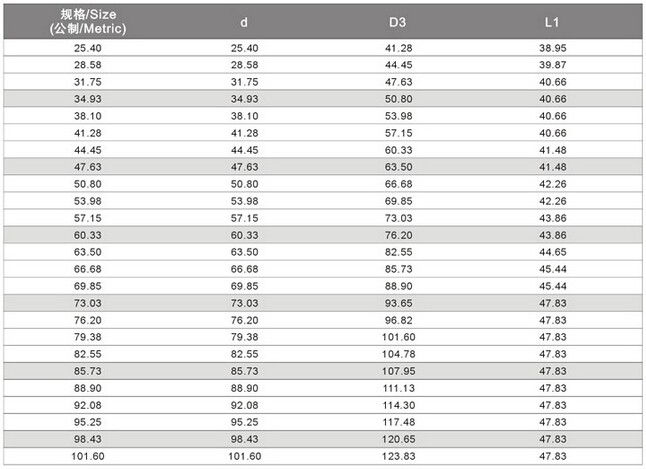

Size:




Packing & Shipping
